Anti Tip Interlock System for Multi Darwers Cabinet DLL61A
- Model NO.: DLL61A
- Shape: Square
- Angel: 90
- Brand: Base on Client Logo
- Condition: New
- Install Way: Screw in
- Application: Drawer, Cabinet
- Specification: 16/19mm Diameter
- HS Code: 83024200
- Material: Zinc Alloy
- Usage: Drawer
- Surface Finishing: Chrome
- Customized: Non-Customized
- Dimension: Anti Tip Interlock System
- Package Way: 1PCS/Inner Box, 12PCS/Middle Box
- Transport Package: Customized
- Origin: China
Specification
| Accessores |
Plane body with wings and 2 plastic parts |
|
Drawers control |
2 |
|
Material |
Zamac |
|
Finish |
zinc plating for zamac, plastics in black |
|
Application |
Drawer chest, multiple drawers cupboard |
|
MOQ |
5,000pcs |
|
Package |
100set per carton box |
|
Delivery time |
30days after order confirmed |
|
Payment terms |
TT or LC |
Size Chart / 尺寸表
|
Drawers Number |

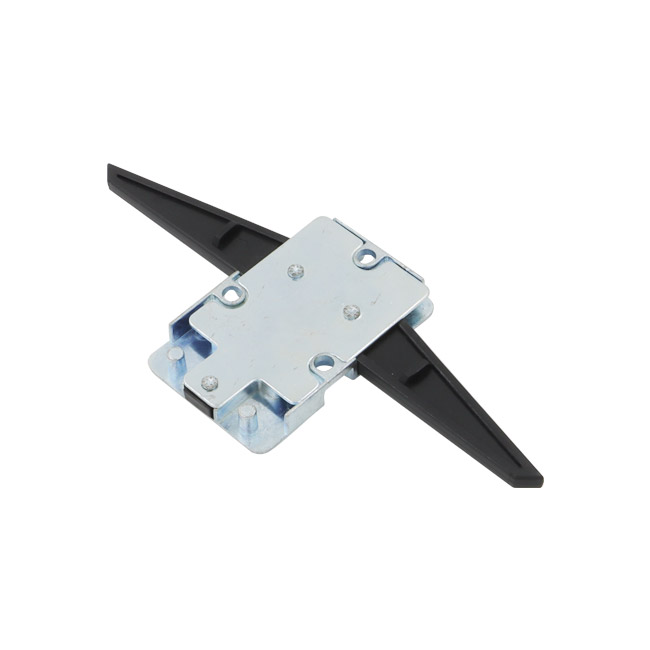

Locking set
|

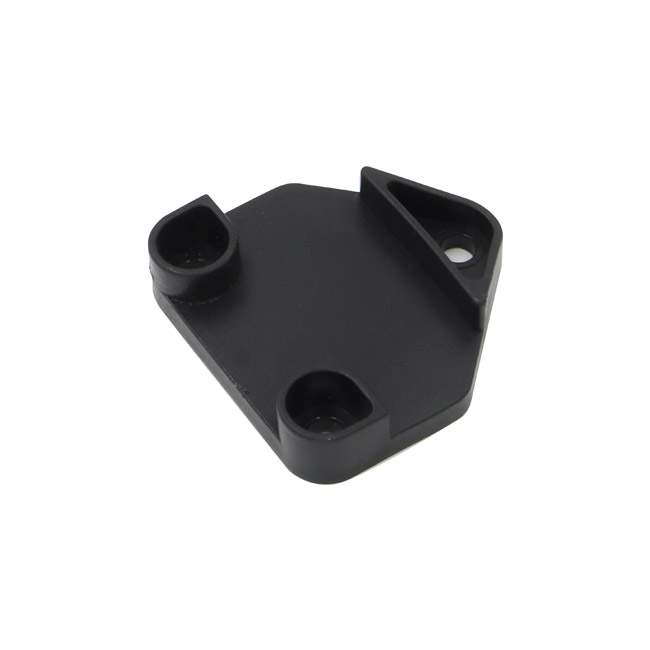

Hook
|

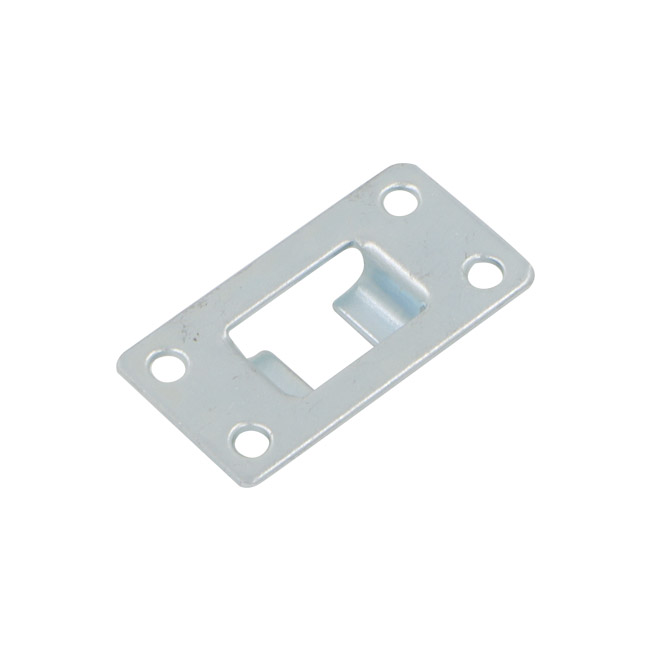

Hook holder
|

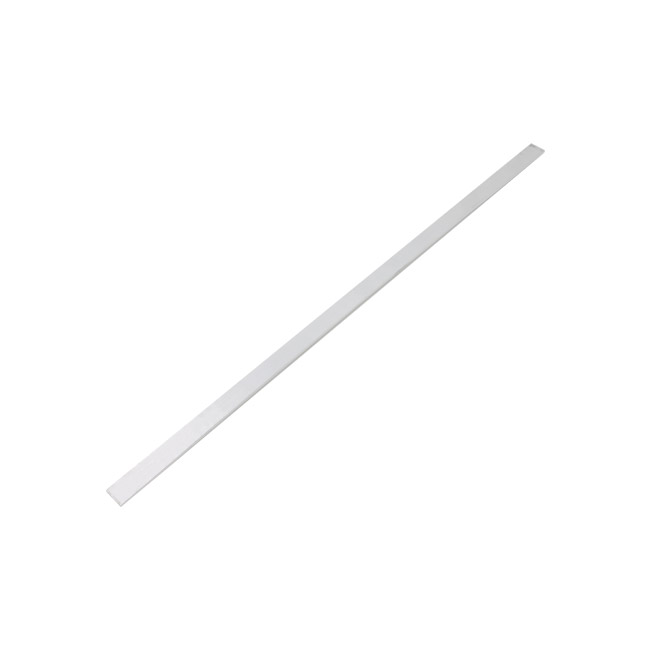

Locking bar
|

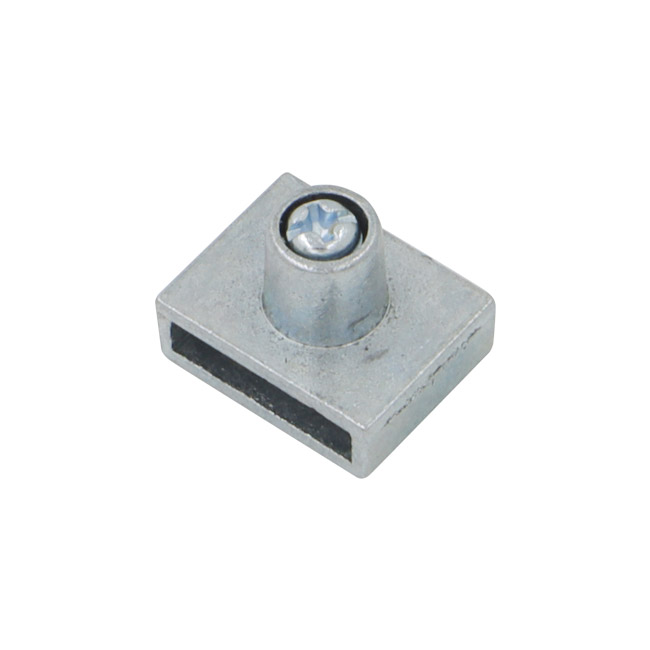

Bar holder
|
|
2 Drawers |
1 |
No need |
No need |
No need |
No need |
|
3 Drawers |
2 |
2 |
2 |
1 |
2 |
|
4 Drawers |
2 |
2 |
2 |
1 |
2 |
Application
Multiple drawer chest, file drawer cabinet, multiple drawer cupboard
Advantage
1.A zamac body with plastic rings
2.With spring lock mechanism inside to control the on/off action of swung wings

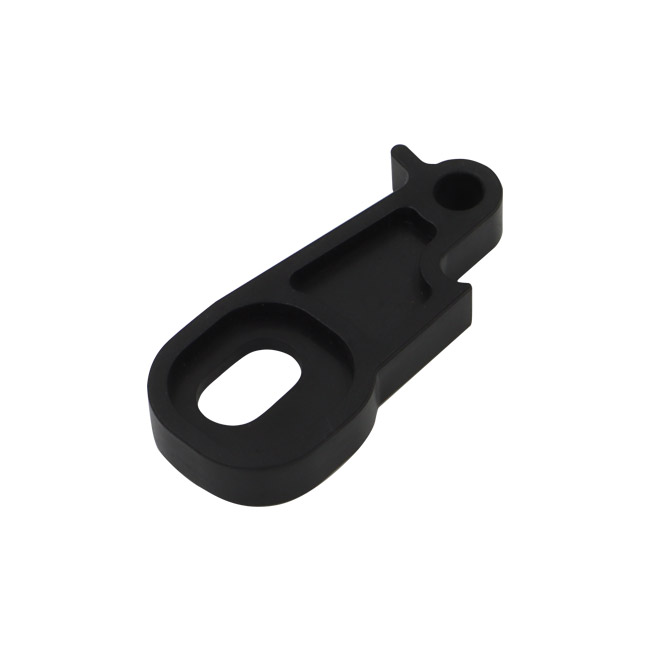

3.With plastic catch on drawers to lock/release the drawer movement
4.Once one drawer pull out, another drawer will be locked in close position to prevent cabinet topple over.
5.Only available on side mounting drawers.

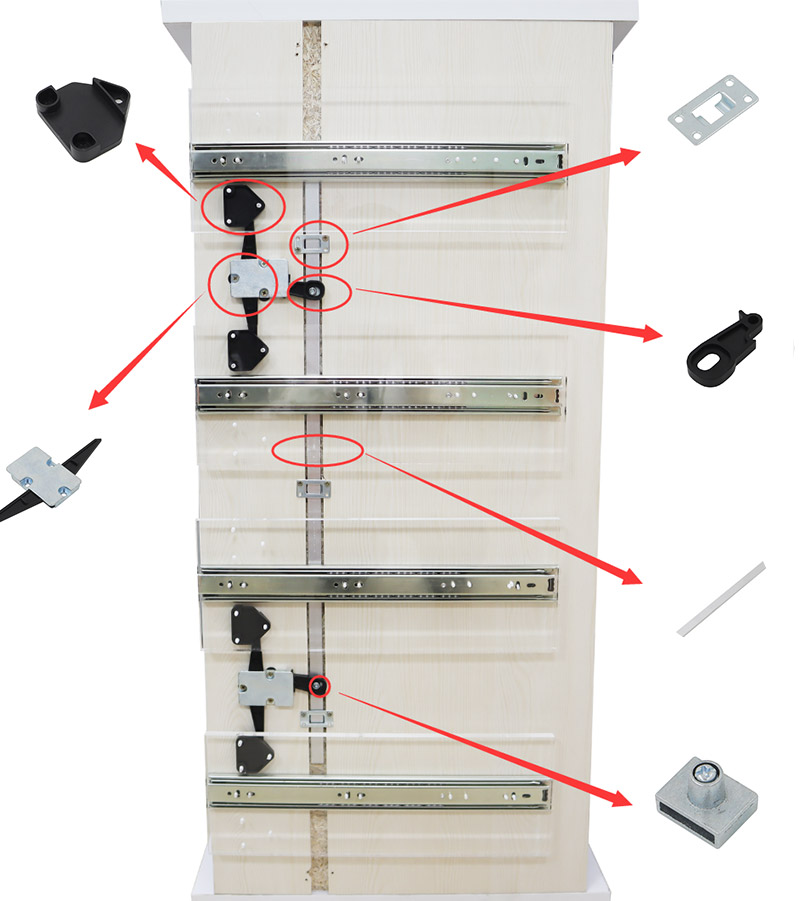

Assembly instruction

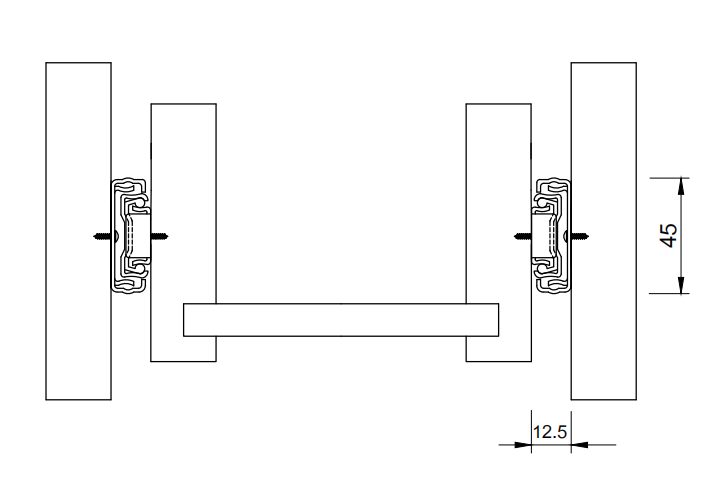

1. Minimal gap between drawers and cabinet

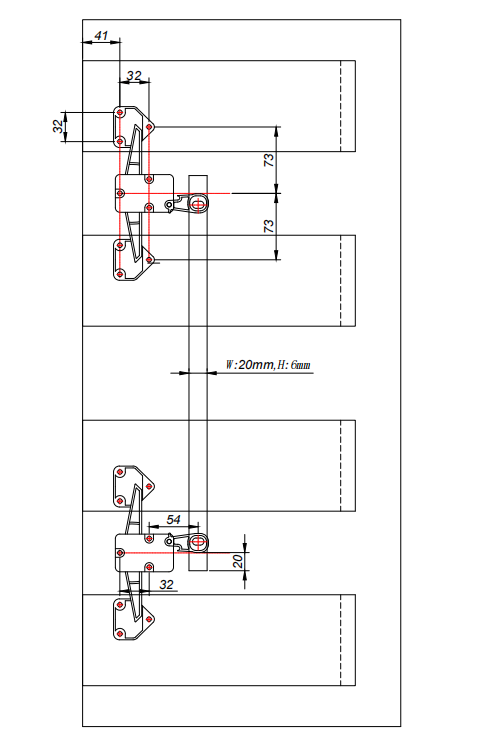

2. Hole position
Package:
10set into a polybag, 10bags into a carton box
