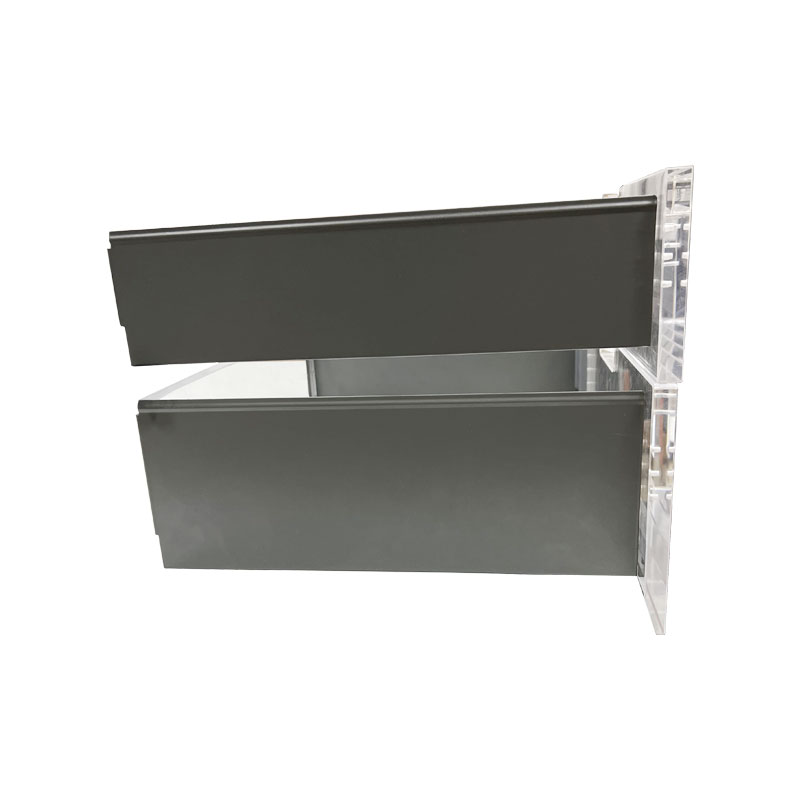

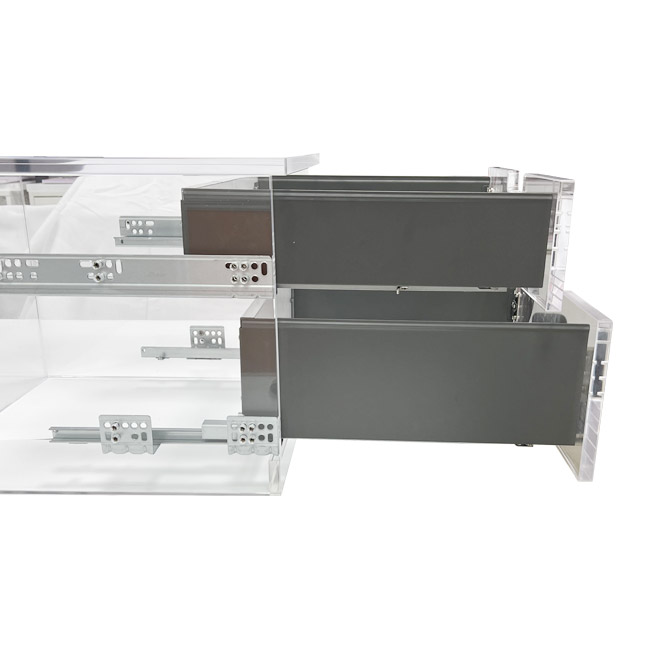

Super slim drawer box slides

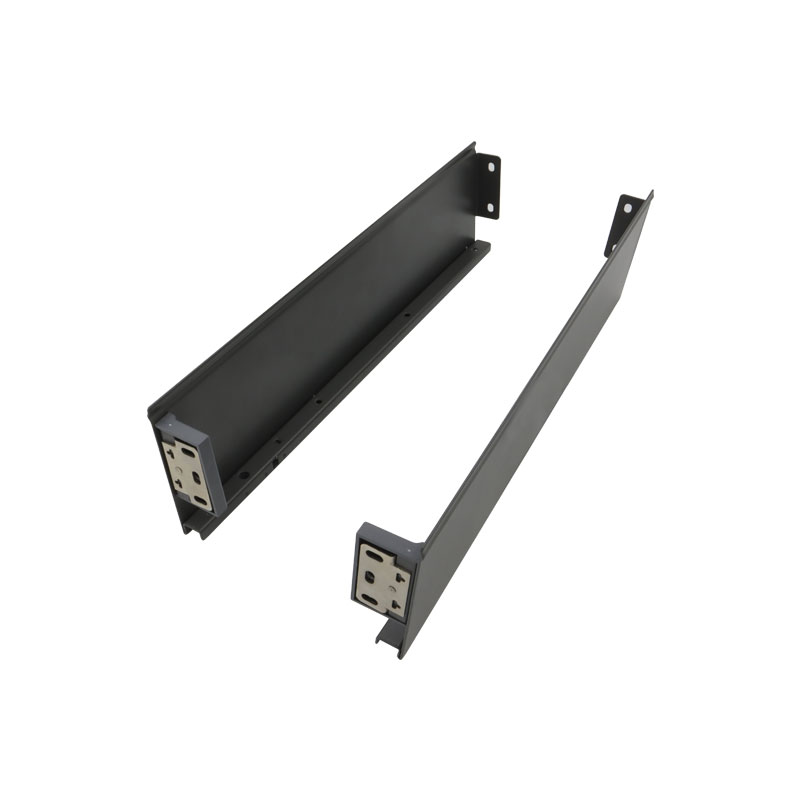

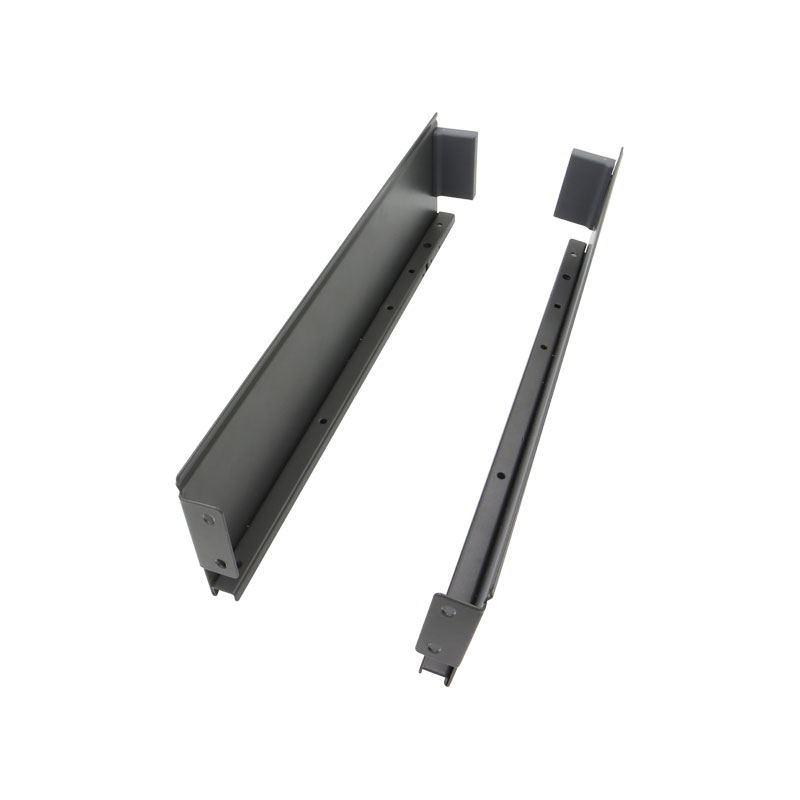

Rolled metal sheet as side panel

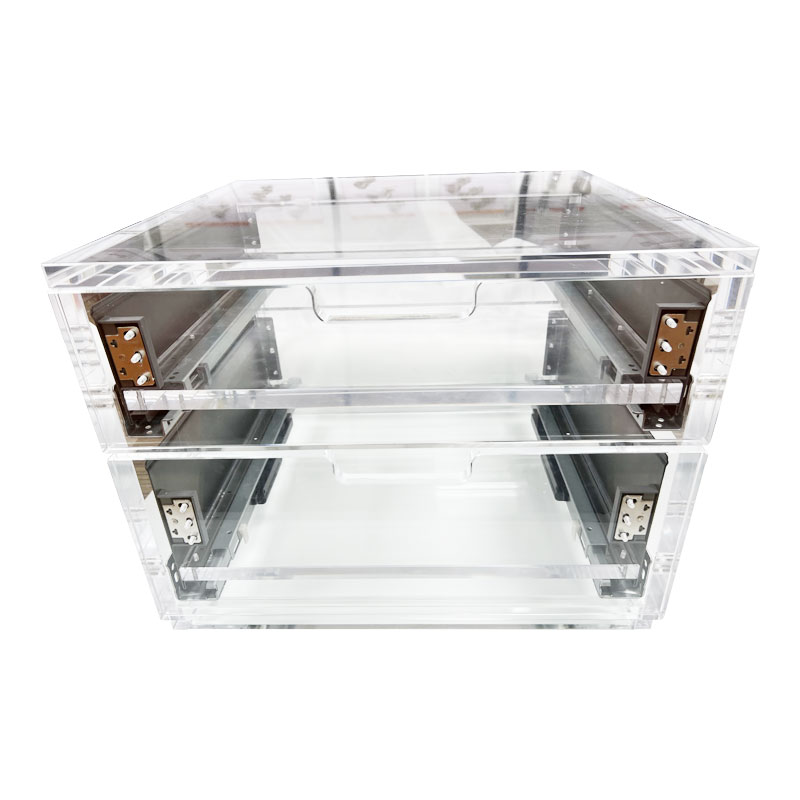

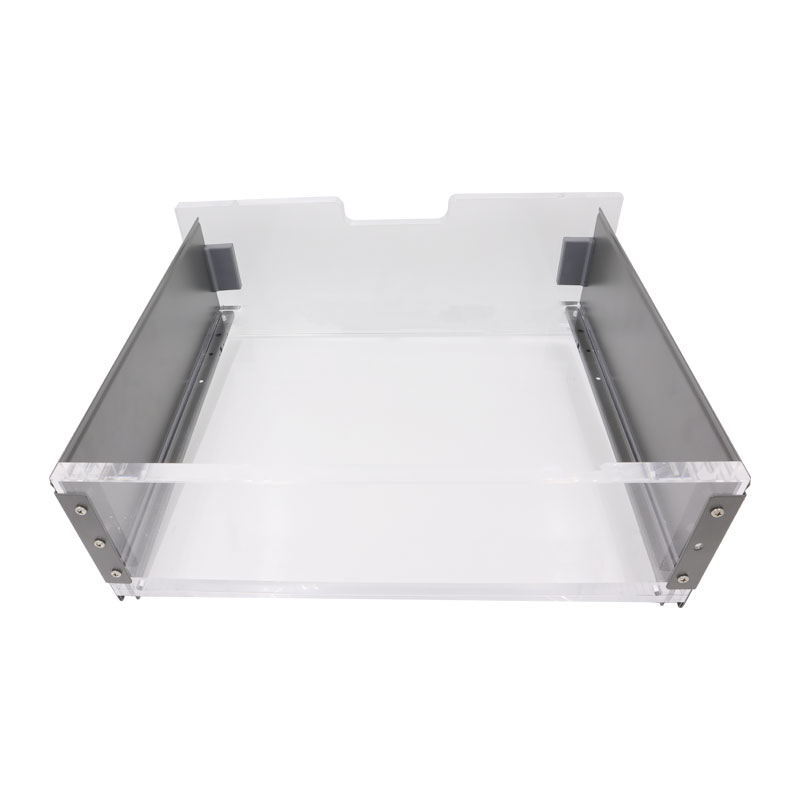

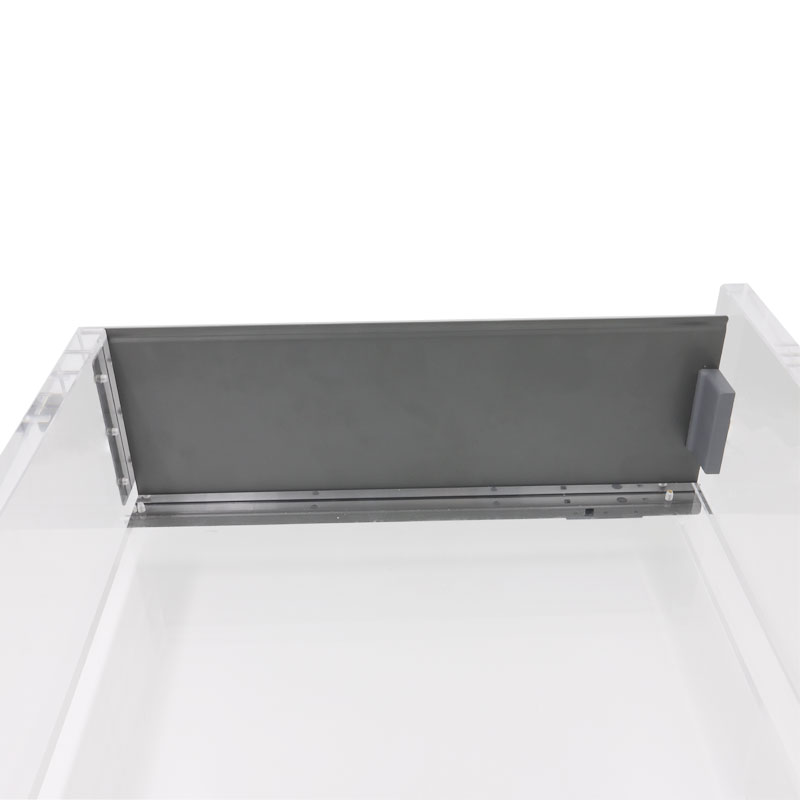

Fit to regular under mount slides
With adjustable on vertical
Specification
|
Function |
Super slim side box drawer system |
|
Material |
Steel |
|
Width |
88mm, 128mm, 158mm |
|
Finish |
Powder coating |
|
Size |
300/350/400/450/500mm |
|
Thickness |
1.4mm |
|
Usage |
File drawer system, cabinet drawer |
|
MOQ |
100set |
|
Package |
6set/carton box |
|
Delivery time |
30days after order confirmed |
|
Payment terms |
T/T or L/C |
Size Chart
|
Length |
Width:88mm |
Width:128mm |
Width:158mm |
|
300mm |
DSD30A-300 |
DSD30B-300 |
DSD30C-300 |
|
350mm |
DSD30A-350 |
DSD30B-350 |
DSD30C-350 |
|
400mm |
DSD30A-400 |
DSD30B-400 |
DSD30C-400 |
|
450mm |
DSD30A-450 |
DSD30B-450 |
DSD30C-450 |
|
500mm |
DSD30A-500 |
DSD30B-500 |
DSD30C-500 |
Application
Kitchen cabinet drawer, storage drawer, lateral box drawer, Maximally increased the storage of the drawers
Features and Advantage
1. Slim straight side panel to save space for drawers

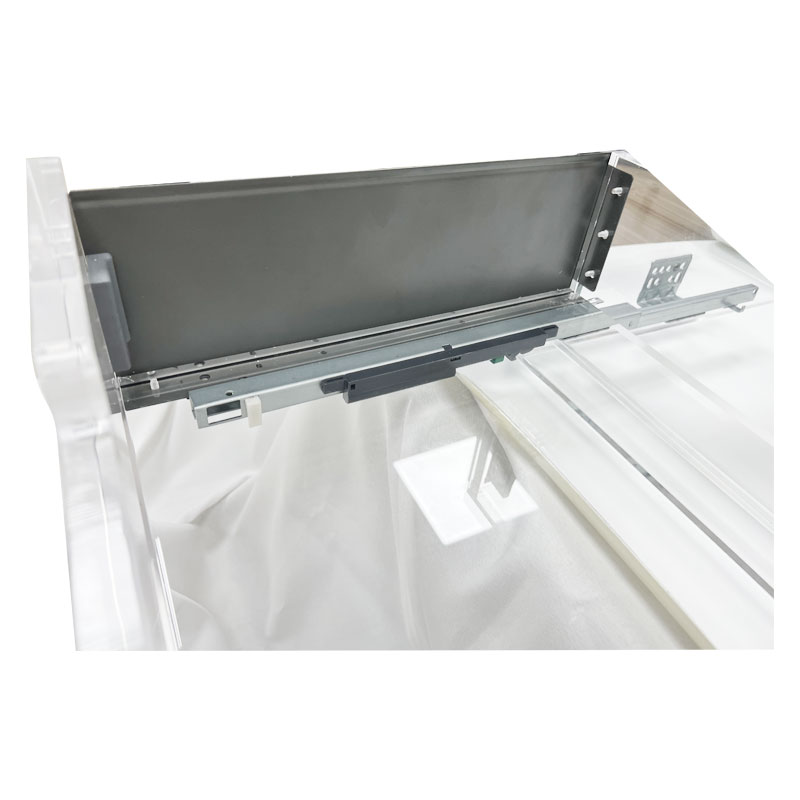

2. Fit to almost all the under mount slides, no matter half extension or full extension, whatever adjustable pin or released handle.
3. High quality powder coating with great corrosion resistance
4. Simple design, easy to mount
5. Allowed to adjustment on vertical
6. Big cost save, not only the material, but also the time on mounting.
Production

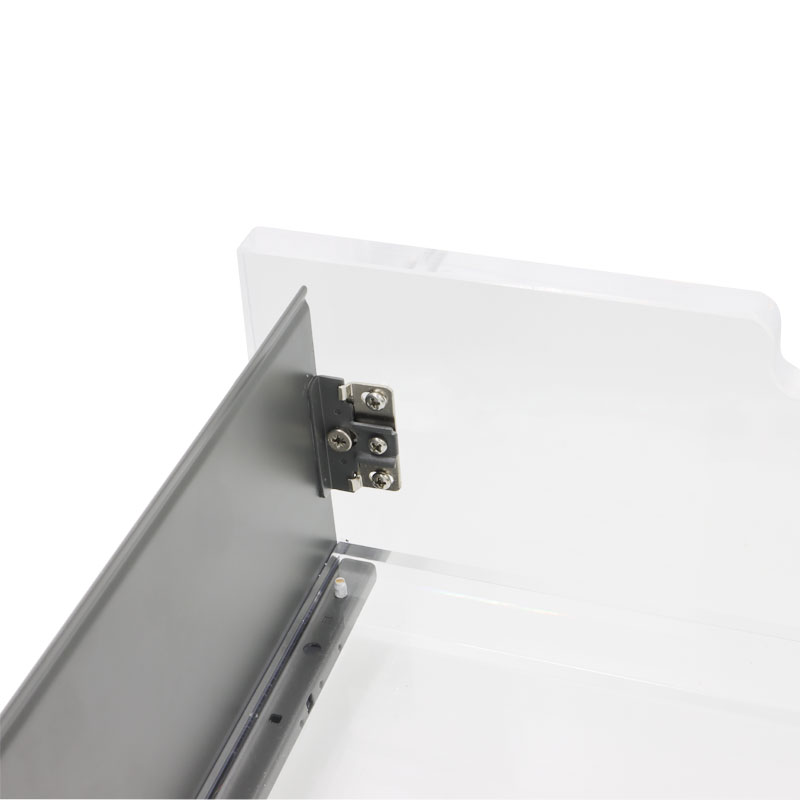

Formed by roller machine, with welded bracket and adjustable mounting plate.
Package
Each set packed into a soft bag, and then into a box with decorative covers, 10 sets into a carton
