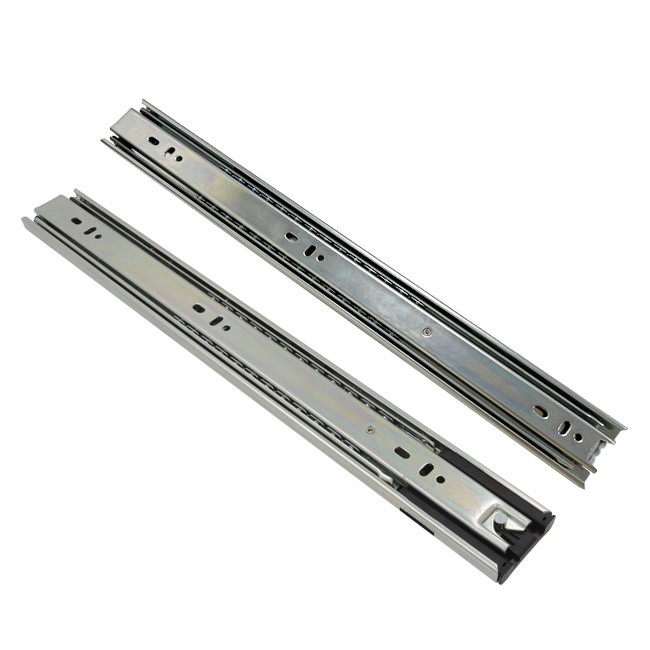

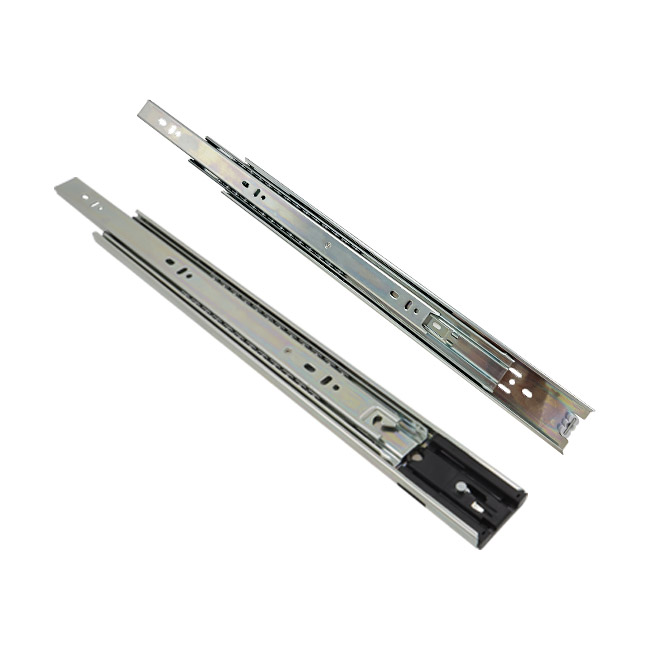

Anti tip ball bearing slides
Anti tip ball bearing slides
Height: 45mm
Full extension
Load capacity: 35kgs
Installation clearance: 12.7mm
Side mounting

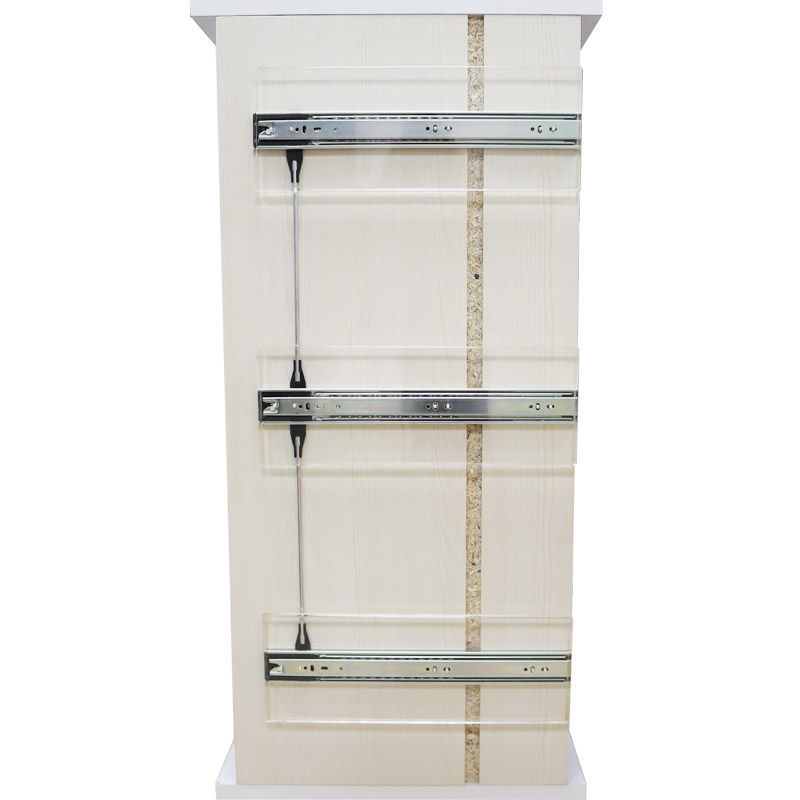

With connecting rod and mechanism to keep only one drawer in open position
Specification
|
Function |
three section, Full extension, |
|
Material |
Cold rollered Steel |
|
Thickness |
1.2x1.2x1.4mm,1.0x1.0x1.2mm |
|
Finish |
Zinc plating/Electric Black |
|
Size |
250/300/350/400/450/500mm |
|
Load capacity |
35kgs |
|
Application |
Kitchen drawer,Cabinet drawer |
|
MOQ |
3,000set |
|
Package |
15set/carton box |
|
Delivery time |
30days after order confirmed |
|
Payment terms |
T/T or L/C |
Size Chart
|
Drawers Number |
Slides
|
Rod clip
|
Connecting Rod
|
|
2 Drawers |
2 |
2 |
1 |
|
3 Drawers |
3 |
4 |
2 |
|
4 Drawers |
4 |
6 |
3 |
|
The rod clip and connecting rod will be double numbers once you need to assembled both side |
|||
Application
Widely used for file drawers, kitchen cabinet, electric appliance, tool box which can load around 45kgs
Features and Advantage

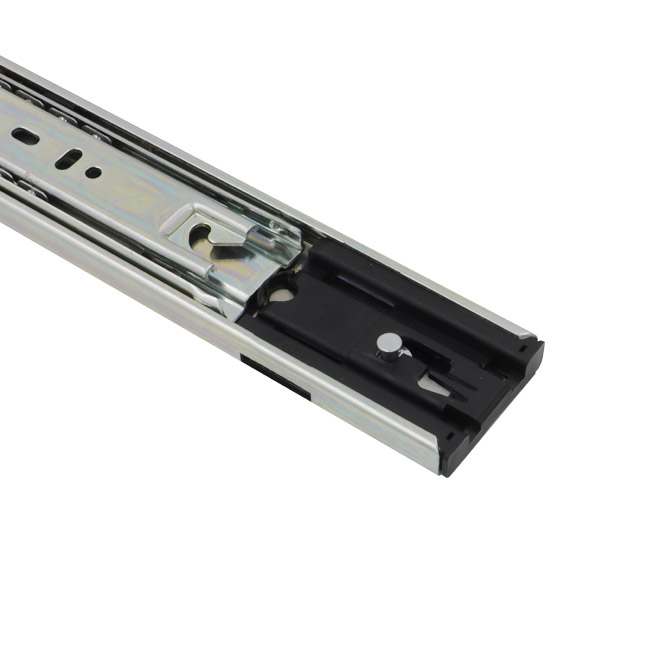

With locking device on the end of slides, with same locking function by only one side locking.

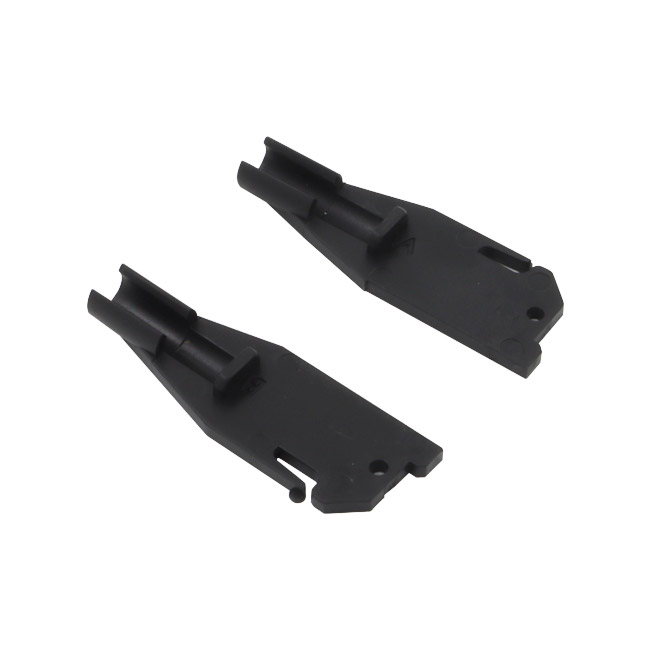

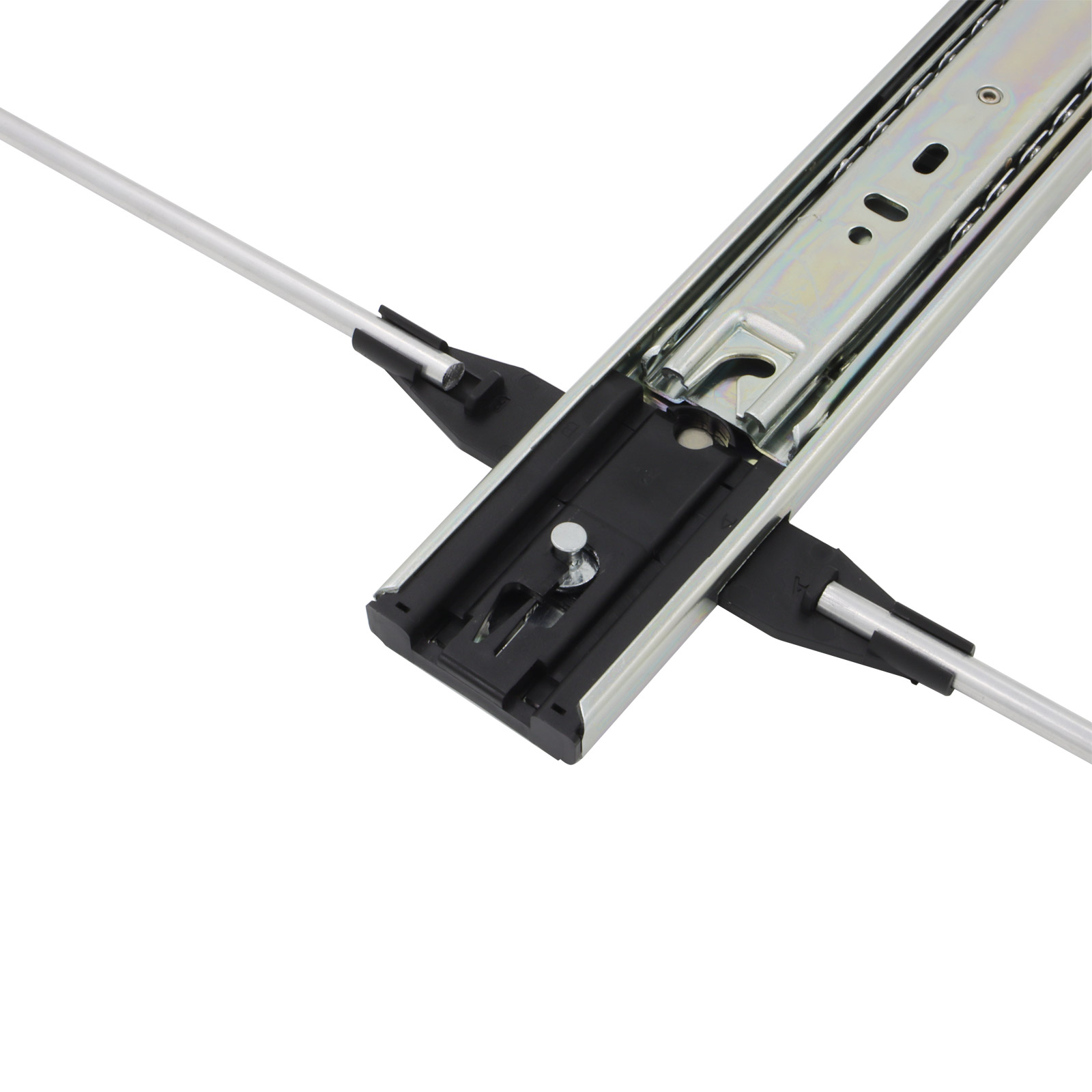

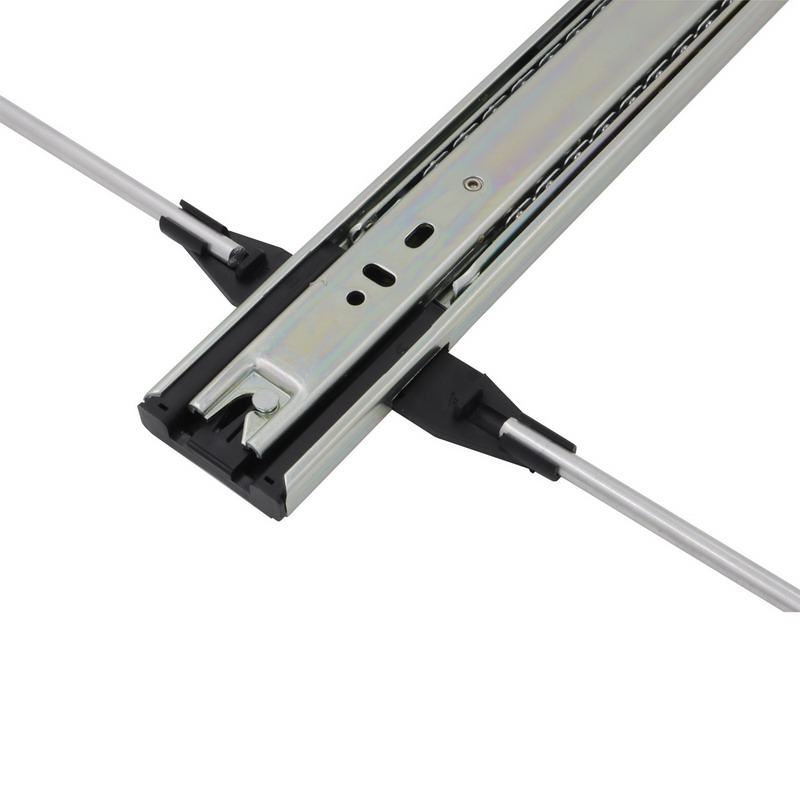

Easy assembly by connecting rod and plastic clip, no additional holes on cupboard

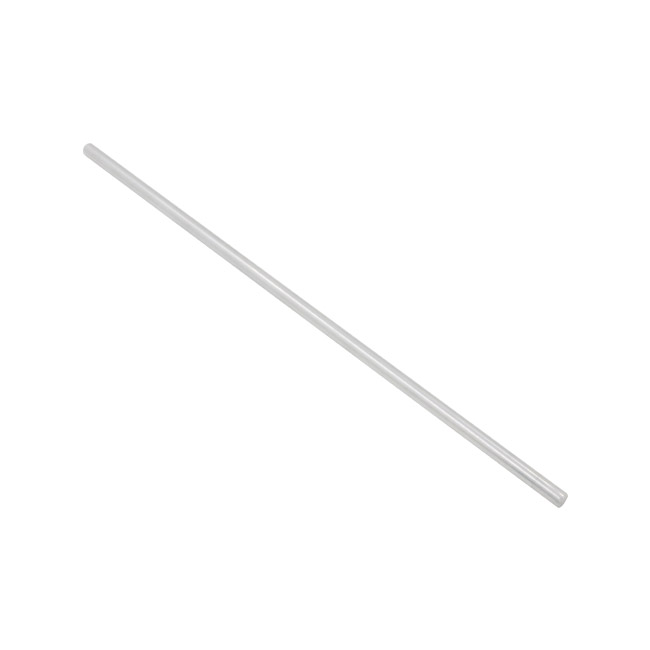

Aluminium rod can be cut various length to fit your height of drawers
Able to locking by one side with anti tip slides, and the other side with normal ball bearing slides, both saving on cost and time.
Package
Each set into a polybag, 15sets each carton box
Rod: each pcs with 3 meter length
