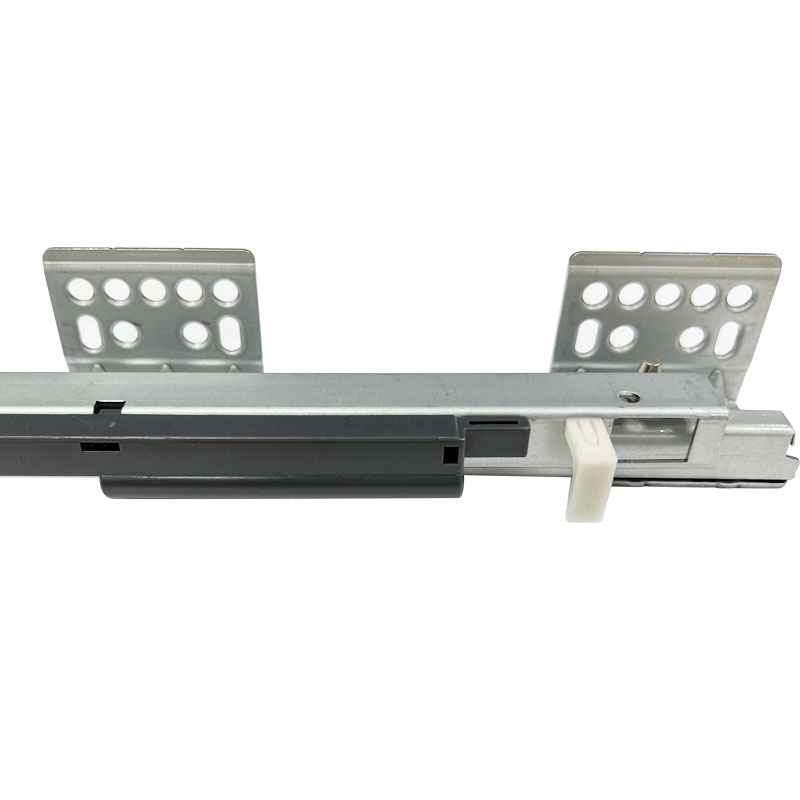

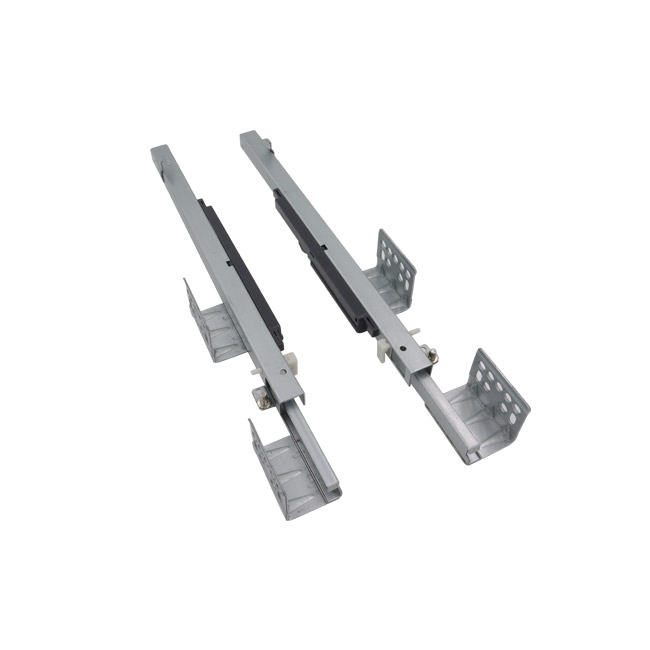

Soft close under mount slides
Virtually full extension(90% pull out)
Load capacity: 15kgs
Soft close
With peg locking
Specification
|
Function |
Soft close, 90% Full extension |
|
Material |
Galvanized Steel |
|
Thickness |
1.4x 1.4mm |
|
Finish |
Neutral |
|
Size |
250/300/350/400/450/500mm |
|
Load capacity |
15kgs |
|
Usage |
Kitchen cabinet, cupboard, storage case |
|
MOQ |
500set |
|
Package |
10set/carton box |
|
Delivery time |
30days after order confirmed |
Size Chart
|
Length |
With adjustable pin |
With released handle |
|
250mm |
DSC10S-250 |
DSC11S-250 |
|
300mm |
DSC10S-300 |
DSC11S-300 |
|
350mm |
DSC10S-350 |
DSC11S-350 |
|
400mm |
DSC10S-400 |
DSC11S-400 |
|
450mm |
DSC10S-450 |
DSC11S-450 |
|
500mm |
DSC10S-500 |
DSC11S-500 |
Application
With 21mm side gap, which are able to fit on normal wood drawer, metal box drawer , slim box drawer and super slim drawer boxes
Features and Advantage
1. 90% full extension based on two section under mount slides

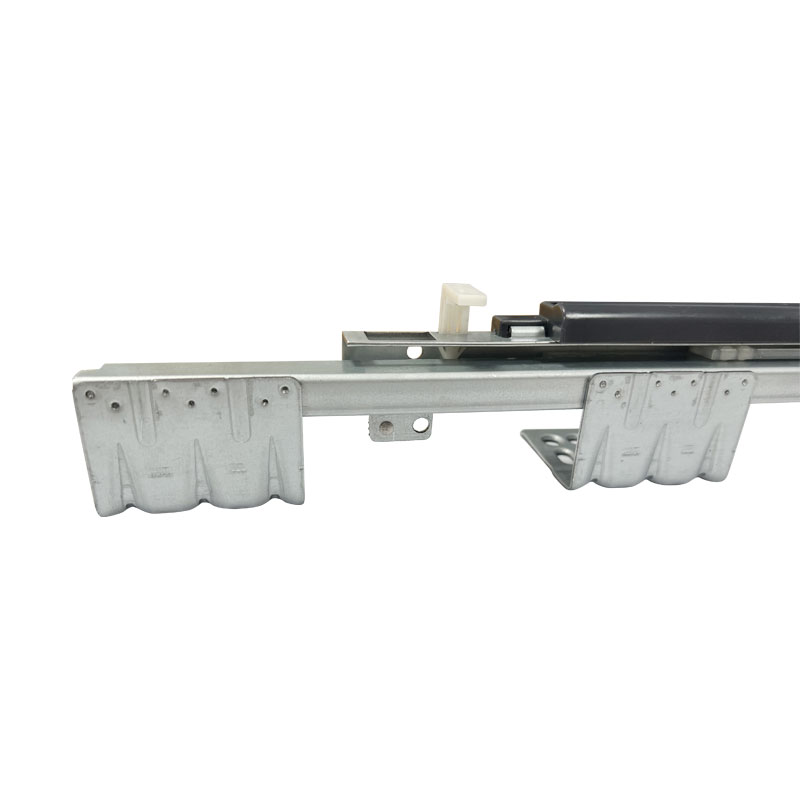

2. With welded metal bracket, which able to fit maximal 19mm side panel, and also cost saving.
3. With same hole partner with regular under mount slides, easy to fit most of the drawers holes system.
4. 1.4mm thickness material, 50,000 cycles testing on 15kgs loading, widely used in bath room cabinet, kitchen furniture and living room cupboard .

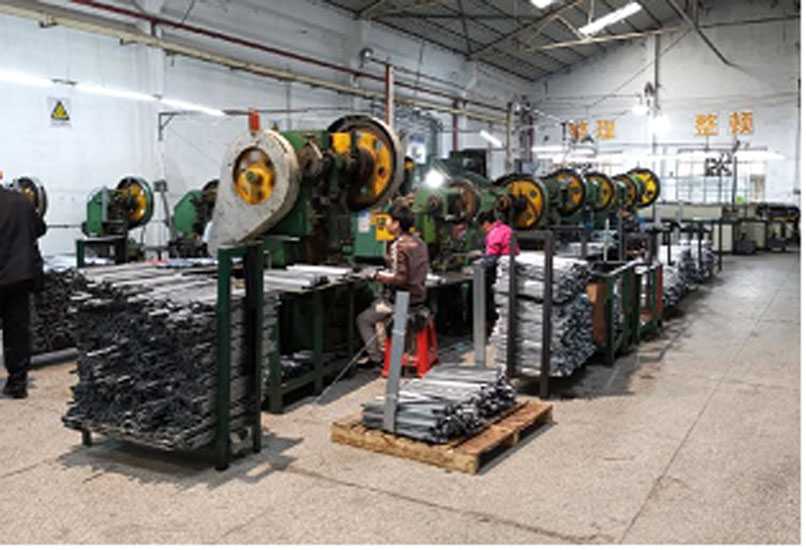

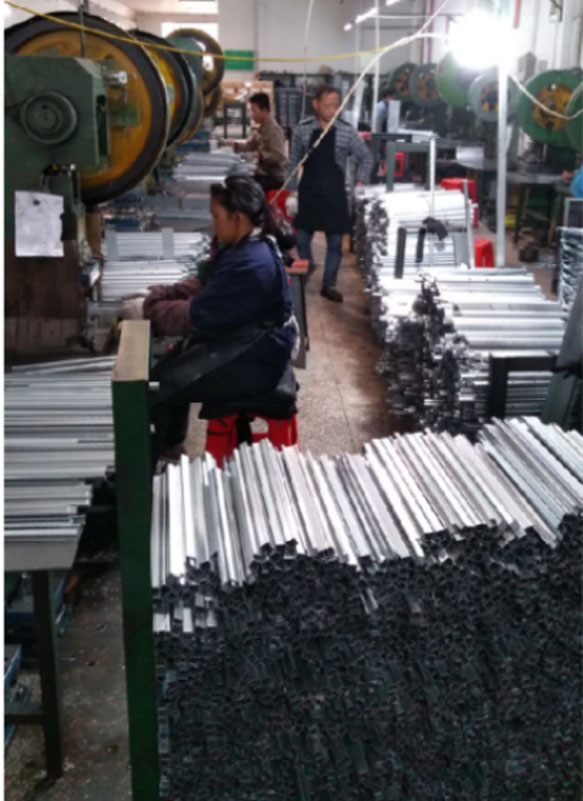

Production
Semi-automatic production, full quality inspection by handle during mass production
Package
Each set into a polybag, 10 sets into a carton box
